Cutting Tool Coatings Explained: A Machinist’s Guide to Choosing Correctly
If you’ve ever wondered why two carbide end mills with identical geometry perform completely differently on the same material, the answer is quite often the coating. A tool’s substrate determines its hardness and base toughness, but the coating determines how it handles heat, friction, and adhesion at the cutting edge.
For the advanced machinist, coating selection isn’t an afterthought, it’s part of the process setup. Get it wrong and you’ll fight built-up edge, premature wear, or thermal cracking. Get it right and you’ll see dramatically longer tool life, higher allowable surface speeds, and better surface finishes.
This guide covers the most widely used commercial coatings… What they are, how they work, and where they belong in your shop.
Why Coatings Matter: The Physics at the Cutting Zone
The cutting zone is a brutally hostile environment. Temperatures at the tool-chip interface can exceed 1,000°C during aggressive steel machining. Friction generates heat faster than flood coolant can dissipate it. Built-up edge (BUE), where workpiece material welds onto the cutting edge, destroys surface finish and accelerates flank wear.
Coatings address these problems through several mechanisms:
- Thermal barrier: Insulating the substrate from heat generated at the cut
- Lubricity: Reducing the coefficient of friction between tool and chip
- Hardness: Resisting abrasion from hard particles in the workpiece
- Chemical inertness: Preventing diffusion and adhesion between tool and material
- Oxidation resistance: Maintaining hardness at elevated temperatures
No single coating excels at all five. Understanding which properties matter most for your specific application: material, operation, coolant strategy, and speed is what separates smart coating selection from guesswork.
The Major Commercial Coatings
TiN — Titanium Nitride
Color: Gold • Hardness: ~2,300 HV • Max Use Temp: ~600°C
TiN is the coating that put PVD on the map. It’s been around since the 1980s and remains relevant because it’s inexpensive, widely available, and genuinely useful for a broad range of general-purpose applications.
TiN reduces friction and provides a modest hardness increase over bare carbide or HSS. It performs well in lower-temperature applications—think drilling mild steel, tapping aluminum, or reaming operations where heat generation is controlled.
Where it works: General-purpose steel drilling and milling, HSS tooling, tapping operations in non-exotic materials
Where it falls short: High-speed dry machining, stainless steel, hardened materials, and anywhere temperatures regularly exceed 600°C
TiCN — Titanium Carbonitride
Color: Blue-gray to violet • Hardness: ~3,000 HV • Max Use Temp: ~400°C
Adding carbon to the TiN matrix increases hardness significantly. TiCN is one of the hardest single-layer PVD coatings available. The tradeoff is a lower oxidation temperature, which limits its effective range.
TiCN excels in abrasive materials where hardness matters more than heat resistance: cast iron, copper alloys, plastics, and composites. It’s also a strong performer in interrupted cut operations where impact resistance is critical, since its increased hardness helps resist chipping.
Where it works: Cast iron, copper, aluminum alloys, plastics, composites, interrupted cuts
Where it falls short: High-temperature operations, stainless steel, dry machining at aggressive speeds.
TiAlN — Titanium Aluminum Nitride
Color: Violet to dark gray • Hardness: ~3,000–3,300 HV • Max Use Temp: ~800°C
TiAlN is where the chemistry gets interesting. At elevated temperatures, the aluminum in the coating oxidizes to form a thin alumina (Al₂O₃) layer on the surface. This oxide layer acts as a thermal barrier… Essentially the coating regenerates its own protection in-process.
This makes TiAlN the go-to for hard steel machining, high-speed dry cutting, and operations where heat generation is aggressive. The self-reinforcing oxide layer dramatically extends tool life compared to TiN in these conditions.
Where it works: Hardened steel (45–65 HRC), high-speed dry milling, die and mold work, hard turning
Where it falls short: Aluminum machining (aluminum content can cause adhesion), interrupted cuts in very hard materials
Brand spotlight: Mitsubishi Materials uses advanced TiAlN variants across their VP series inserts for hard part turning. Helical Solutions incorporates TiAlN and AlTiN coatings throughout their end mill lines for steel and alloy applications.

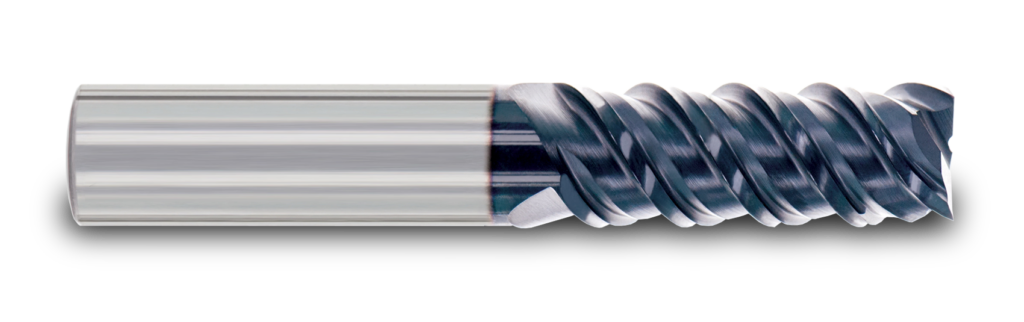

AlTiN — Aluminum Titanium Nitride
Color: Black to dark gray • Hardness: ~3,300–3,500 HV • Max Use Temp: ~900°C
AlTiN is TiAlN with the ratio flipped: higher aluminum content relative to titanium. That compositional shift yields a harder coating with even better oxidation resistance at extreme temperatures. If TiAlN is the workhorse for hard steel, AlTiN is the choice when you’re pushing the absolute limits of speed and temperature.
AlTiN is common in aerospace machining where Inconel, titanium alloys, and hardened stainless are the daily workpiece materials. It performs well under dry cutting conditions where flood coolant isn’t practical or desired.
Where it works: Inconel, titanium alloys, hardened stainless, aggressive dry or near-dry milling, aerospace subcontract work
Where it falls short: Aluminum and soft non-ferrous materials, operations requiring high lubricity over high hardness
Brand spotlight: Iscar’s IC830 and IC840 insert grades use advanced nitride coatings including AlTiN variants for high-temperature turning of superalloys. Garr Tool’s MEGA-COOL end mills leverage similar coatings for aggressive steel and stainless applications.
ZrN — Zirconium Nitride
Color: Pale gold • Hardness: ~2,800 HV • Max Use Temp: ~600°C
ZrN is the non-ferrous machinist’s coating of choice. It has a very low coefficient of friction and excellent resistance to adhesion with aluminum, copper, brass, and other soft metals. Workpiece material simply doesn’t want to stick to it.
Where TiN or TiAlN would develop built-up edge rapidly in aluminum, ZrN stays clean longer and maintains a sharper effective cutting geometry. It’s also the preferred coating for medical and food-contact tooling because it’s biocompatible and chemically inert.
Where it works: Aluminum, copper, brass, magnesium, and other non-ferrous materials; medical device machining; plastics
Where it falls short: Ferrous materials at elevated speeds, high-temperature applications.

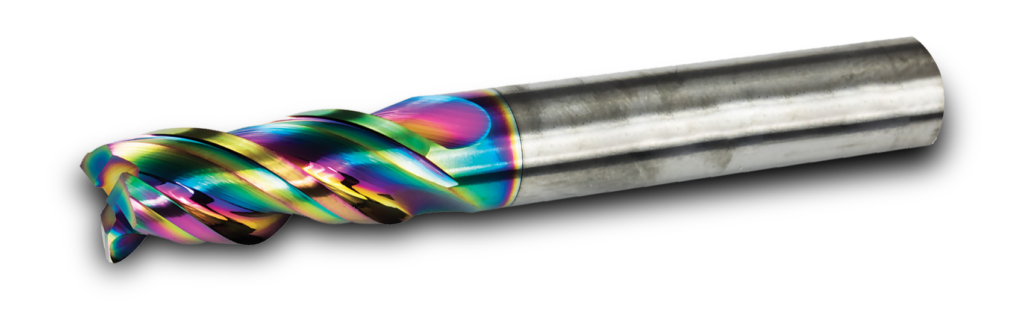

DLC — Diamond-Like Carbon
Color: Dark gray/black to “rainbow” • Hardness: ~5,000–8,000 HV • Max Use Temp: ~350°C
DLC is one of the hardest commercially available coatings for cutting tools, and it has the lowest coefficient of friction of any coating in this guide—lower than ZrN, lower than TiN, approaching that of true PTFE in some formulations.
It’s also one of the most temperature-sensitive. Above ~350°C the carbon structure begins to convert to graphite, rapidly losing its hardness advantage. This limits DLC almost entirely to aluminum and non-ferrous machining, where heat generation is manageable.
When you’re chasing the best possible surface finish in aluminum—think mirror bores, precision automotive components, or high-volume die casting inserts—DLC is hard to beat. The combination of extreme hardness and ultra-low friction keeps edges sharper longer and produces exceptional finishes.
Where it works: High-speed aluminum milling and finishing, non-ferrous precision applications, long-run production in soft materials
Where it falls short: Any ferrous or high-temperature application; steel machining will destroy DLC quickly.
CVD Diamond
Color: Transparent to gray • Hardness: ~8,000–10,000 HV • Max Use Temp: ~700°C (varies by formulation)
True CVD (Chemical Vapor Deposition) diamond coatings are in a separate category from DLC. A crystalline diamond film is grown directly on the carbide substrate, producing a coating that is essentially as hard as natural diamond.
CVD diamond is the dominant choice for machining highly abrasive non-metallic materials: carbon fiber reinforced polymers (CFRP), graphite electrodes for EDM, ceramics, metal matrix composites (MMC), and green-state tungsten carbide. These materials destroy conventional coatings in seconds but barely register against CVD diamond.
The caveat is cost—CVD diamond tooling is premium priced. It also has poor adhesion strength compared to PVD coatings, and the thick coating can slightly alter edge geometry. Never use CVD diamond on ferrous materials; carbon from the coating will diffuse into iron at temperature, causing rapid delamination.
Where it works: CFRP, graphite, ceramics, MMC, highly abrasive non-metallic composites
Where it falls short: All ferrous materials, any application where precise edge geometry is critical, cost-sensitive production runs.
Multi-Layer and Nano-Composite Coatings
Modern coating technology has moved well beyond single-layer PVD. The most advanced coatings on cutting tools today are multi-layer stacks or nano-composite structures engineered to combine properties that single-layer coatings can’t deliver simultaneously.
Multi-Layer TiAlN/TiN Stacks
Alternating nanometer-thin layers of TiAlN and TiN create a coating with superior fracture toughness—cracks propagating through the coating deflect at layer interfaces rather than continuing through to the substrate. The result is a harder-yet-tougher coating that resists both abrasive wear and chipping in interrupted cuts.
AlCrN — Aluminum Chromium Nitride
AlCrN is an emerging alternative to AlTiN for high-temperature applications. Replacing titanium with chromium produces a coating with excellent oxidation resistance up to ~1,100°C and better chemical stability against ferrous workpiece materials. It’s becoming more common in gear cutting, broaching, and hot-forming die applications.
Proprietary Nano-Coatings from Major Tooling Manufacturers
Tooling manufacturers have invested heavily in proprietary multi-layer and nano-composite coatings that go well beyond generic TiAlN or AlTiN. These are worth paying attention to:
Mitsubishi Materials VP series coatings use a “Smooth Surface Technology” nano-texture that reduces friction at the flank face—extending tool life in high-speed finishing of hardened steels without requiring additional surface treatment.
Helical Solutions Aplus coating is an AlTiN-based nano-composite specifically engineered for high-temp steel milling—optimized for the high helix geometries Helical uses across their end mill lines.
Iscar SUMO-TEC grades combine CVD and PVD coating technologies with post-coat surface treatments to optimize insert geometry at the cutting edge level, not just the face.
Emuge-Franken Ratio-Tap coatings are specifically optimized for threading applications—reducing friction in the thread form contact zone to improve tap life in stainless steel and other difficult materials.
Quick Reference: Coating Selection by Material
| Workpiece Material | Recommended Coatings | Notes |
| Aluminum (6061, 7075) | ZrN, DLC, TiB₂, uncoated carbide | Avoid TiAlN/AlTiN—aluminum content causes BUE |
| Mild Steel | TiN, TiCN, TiAlN | TiAlN preferred for higher speeds |
| Alloy Steel (H13, P20) | TiAlN, AlTiN, multi-layer TiAlN | Higher Al content as hardness increases |
| Hardened Steel (45–65 HRC) | AlTiN, TiAlN, AlCrN | Dry or near-dry preferred; flood can thermal-shock coating |
| Stainless Steel (304, 316) | TiAlN, AlTiN, PVD TiCN | Low feed rates, manage heat; high lubricity important |
| Inconel / Superalloys | AlTiN, AlCrN, PVD multi-layer | Reduced speeds, rigid setup essential |
| Titanium Alloys | TiAlN (low Al variant), uncoated carbide | Avoid Al-rich coatings—Ti affinity causes adhesion |
| Cast Iron | TiCN, TiN, Al₂O₃ (CVD for inserts) | Dry cutting preferred; avoid water-based coolants |
| Copper / Brass | ZrN, TiN, uncoated carbide | Low temp application; lubricity critical |
| CFRP / Composites | CVD Diamond, DLC | Abrasive materials destroy conventional coatings quickly |
| Graphite | CVD Diamond | Graphite is extremely abrasive; only CVD diamond holds up |
Coating Considerations Beyond Material Selection
Coolant Strategy Matters
Many advanced coatings—especially AlTiN and TiAlN variants—are engineered for dry or near-dry (MQL) cutting. Applying flood coolant to these coatings at high speeds can cause thermal shock: the rapid temperature cycling between the hot cutting zone and the cold coolant creates micro-cracks in the coating, accelerating failure. If your process requires flood coolant, verify the coating is compatible with wet cutting before you run it.
Coating Thickness and Edge Preparation
PVD coatings are typically 2–5 microns thick—thin enough to preserve edge sharpness on solid carbide end mills and drills. CVD coatings are thicker (8–20 microns) and are typically applied to indexable inserts, not solid round tools, because the coating would round over a sharp cutting edge. Most CVD inserts undergo edge honing or edge treatment before coating to compensate.
Recoating
Quality solid carbide end mills can be resharpened and recoated, extending tool life significantly. After regrinding, the cutting edges are returned to sharp geometry and a fresh PVD coating is applied. Recoating is cost-effective for expensive specialty tooling but should be sourced from a reputable coating house that can match or exceed the original coating specification.
Substrate Quality Limits Coating Performance
A premium AlTiN coating on a low-quality carbide substrate will still underperform a quality tool. Grain size of the carbide, cobalt content, and sintering quality all affect how the coating adheres and how the tool handles the stresses of the cut. This is part of why tooling from quality manufacturers like Mitsubishi Materials, Iscar, Garr Tool, and Helical Solutions consistently outperforms lower-cost alternatives—the coating and substrate are engineered together.
