How to Thread Inconel Without Breaking Taps
Tool selection, speeds and feeds, lubrication strategy, and when to walk away from tapping entirely
Inconel is not a forgiving material on a good day. It work-hardens rapidly, generates intense heat at the cutting zone, and has a tendency to grab tooling at exactly the wrong moment. Threading it adds another layer of difficulty because taps are inherently less rigid than solid end mills, they can’t be pulled out of a hole the way a drill can, and a broken tap in a nickel superalloy part is often the end of that part.
Most of the shops that struggle with Inconel threading are not doing anything obviously wrong. They’re using decent taps, running reasonable speeds, and still watching tools break or pulling parts out of the machine with threads that don’t gauge. The problem is almost always a combination of small decisions that each seem reasonable in isolation but stack up badly against a material that punishes accumulated error.
This post covers the full threading picture for Inconel: what makes it hard at the metallurgical level, how to select and set up a tap correctly, what your parameters should look like, why lubrication is doing more work than most machinists realize, and when thread milling is the right answer instead of tapping.
Why Inconel Is Harder to Thread Than It Looks
The Inconel family, most commonly 625 and 718 in production machining, is a nickel-chromium-based superalloy engineered for high-temperature strength and corrosion resistance. Those same properties that make it useful in aerospace, oil and gas, and medical applications are exactly what make it miserable to machine.
Three properties drive most threading problems:
Work Hardening
Inconel work-hardens faster than almost any common engineering material. When the cutting edge deforms the material rather than cleanly shearing it, the deformed zone becomes significantly harder than the surrounding base material. On the next pass of the cutting edge, or on the next tap tooth entering the cut, you’re now cutting into material that’s harder than what you started with.
In a threading operation, this is particularly dangerous. A tap that dwells, rubs, or loses cutting momentum rather than feeding consistently will harden the thread flanks on the way in. By the time it tries to reverse out, it may be cutting material that’s 30 to 50 percent harder than the bulk workpiece. That’s when taps break on the back-out.
Heat Generation and Poor Thermal Conductivity
Inconel has roughly one-quarter the thermal conductivity of carbon steel. Heat generated at the cutting zone stays at the cutting zone instead of conducting away into the workpiece or chip. Tap teeth operate in that heat-saturated environment for the full depth of the thread, and tool materials that perform well in steel can soften and fail quickly in Inconel if the heat isn’t managed aggressively.
High Strength and Toughness
Inconel 718, the most common aerospace grade, has a tensile strength in the range of 1,380 MPa (200 ksi) in the aged condition. That’s not a material you push through with a marginal tap or loose setup. Every element of the process needs to be correct because the material has no tolerance for shortcuts.
Tap Selection: Getting This Right Before the Machine Starts
Tap selection for Inconel is not the place to use what’s already in the drawer. The wrong tap in this material is expensive, both in broken tools and in scrapped parts.
Spiral Flute vs. Spiral Point
For through-holes in Inconel, a spiral-point (gun) tap is the standard recommendation. It pushes chips ahead of the tap and out the bottom of the hole, keeping them out of the cutting zone. In a material that work-hardens, re-cutting chips is a fast path to tap breakage.
For blind holes, a spiral-flute tap evacuates chips up and out. Blind holes in Inconel require more care because there’s no chip exit at the bottom, and chip packing in a blind hole generates axial force that the tap shank has to absorb. Keep flute length generous relative to thread depth and don’t push to the absolute bottom of the hole.
Thread Form: Cut Tap vs. Form Tap
Form taps (thread-forming, no flutes, no chip generation) are worth serious consideration for Inconel in the right hole conditions. Instead of cutting material away, they cold-form the thread by displacing material. This eliminates chips entirely, which eliminates the work-hardening risk from chip re-cutting and removes chip evacuation as a variable.
The tradeoff is that form tapping requires a specific hole size (larger than a standard drill), generates higher torque, and requires through-coolant or excellent lubrication to prevent galling. The formed thread also has a different surface finish characteristic than a cut thread, typically better, because the material is burnished rather than cut.
For through-holes in Inconel where consistent thread quality matters and lubrication delivery is reliable, form tapping is a legitimate alternative to cut tapping and often extends tool life considerably.
Coating and Substrate
For Inconel, the tap substrate and coating matter as much as the geometry. High-speed steel taps are generally not the right choice: the material demands the hot hardness of cobalt HSS at minimum, and solid carbide is the correct answer for anything beyond prototype quantities or very large thread sizes where carbide taps become impractical.
Coating selection follows coating logic for high-temperature alloys. TiAlN and AlTiN coatings provide oxidation resistance and maintain hardness at elevated cutting temperatures, which is exactly what Inconel threading generates. Emuge-Franken’s HSSE-PM and TiN-coated tap lines are engineered for difficult materials and are worth specifying by name rather than pulling a generic tap from inventory.
LMT Tools brings similar capability in their premium threading lines. When you’re threading Inconel in any volume, the cost difference between a properly specified tap and a general-purpose tap is small compared to the cost of a scrapped part or a broken tool extraction.
Speeds and Feeds: Slower Than You Think, More Consistent Than You've Been Running
Threading Inconel slow is not a suggestion, it’s a requirement. The cutting speed envelope is narrow and the consequences of running outside it are severe.
| Parameter | Inconel 625 / 718 (Cut Tapping) | Notes |
| Cutting Speed (SFM) | 5 to 15 SFM | Start at 8 SFM, adjust based on tap condition and chip character |
| Cutting Speed (m/min) | 1.5 to 4.5 m/min | Carbide taps can push toward the higher end |
| Feed Rate | Pitch-controlled (rigid tapping) | Synchronization error is not acceptable in Inconel |
| Spindle Direction | Clockwise in, counterclockwise out | Back-out speed can match or slightly exceed forward speed |
| Coolant Pressure | High pressure preferred | Through-spindle or high-pressure flood; not a misting situation |
| Peck Cycle | Not recommended for tapping | Interrupted cutting promotes work hardening |
| Hole Prep | H3 or H4 tolerance tap, correct drill diameter | Oversized pre-drill is not the answer |
The single most common parameter mistake in Inconel threading is running too fast. A machinist who gets away with 25 SFM in 304 stainless tries the same speed in 718 Inconel and wonders why taps are breaking. The work-hardening rate and heat generation at those speeds in a nickel superalloy are in a different category.
Rigid tapping is non-negotiable. A tension-compression tapping head may be acceptable for some materials but in Inconel the synchronization compliance it provides can allow the tap to dwell or lose feed momentum at exactly the wrong point in the cycle. Rigid tapping with a synchronized spindle and feed is the only approach that keeps the tap moving consistently through the cut.
A tap that loses momentum and rubs rather than cuts is work-hardening the thread flanks in real time. The next thing that happens is the tap can’t generate enough torque to back out against the hardened material, and it breaks on reversal. This is not a tap quality problem. It is a process consistency problem. Rigid tapping, correct speed, correct lubricant, every time.
Hole Preparation: The Thread Starts at the Drill
The pre-drilled hole quality determines a significant portion of the threading outcome before the tap touches the part. In Inconel, this is not a detail you can afford to overlook.
Drill Diameter
Use the drill diameter specified for your tap’s tolerance class, typically H3 for most Inconel threading applications. The instinct to open the hole slightly to reduce tap torque is understandable but counterproductive: a hole that’s too large produces threads with insufficient engagement, and marginal thread engagement in a high-strength material is a field failure waiting to happen.
Drill the hole to the correct depth with a margin below the required thread depth. In a blind hole, a drill point that terminates at the thread depth is not adequate clearance for a tap that needs room to stop and reverse without packing chips into the point.
Hole Condition
The drilled hole surface condition matters. A drill that’s worn or running too fast will leave a work-hardened bore before the tap arrives. Use sharp, properly specified drills for Inconel, carbide or cobalt HSS depending on the diameter and depth, and don’t push them past their useful life to save a few dollars before threading.
Deburr the hole entry. A burr at the entry point of a blind hole can deflect the first tap thread and start the operation with misalignment. In Inconel, a misaligned tap that tries to correct itself mid-hole will break.

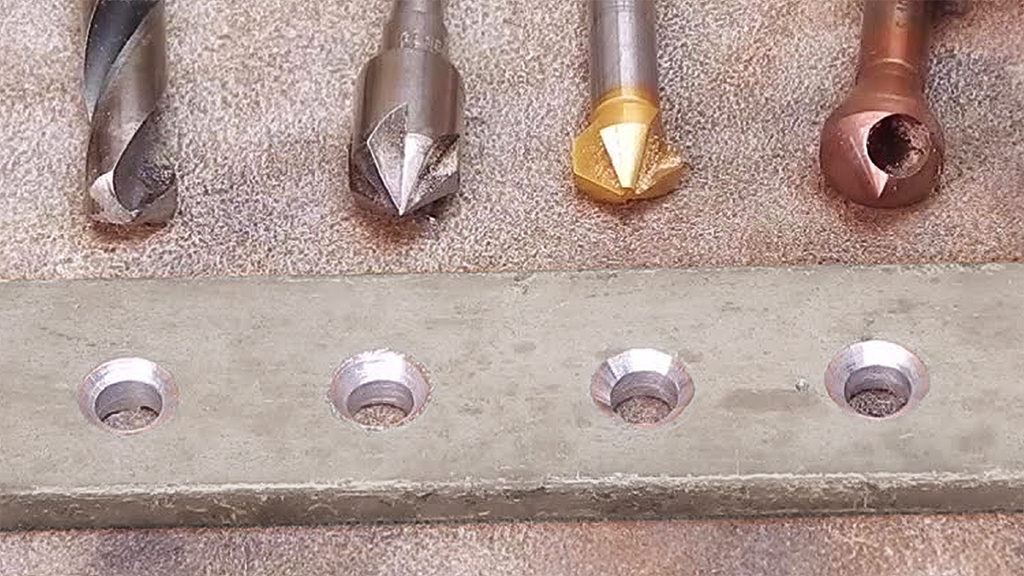

Countersink
A light chamfer at the hole entry, matching the thread angle, guides the tap start and reduces the force required to initiate the first full thread. This is good practice in any material and in Inconel it’s close to mandatory for consistent results.
Lubrication: This Is Where Most Setups Fall Short
If there is one area where Inconel threading setups consistently underperform, it’s lubrication. Flood coolant at standard shop concentration and pressure is not adequate for this application. It’s not a matter of degree, it’s the wrong tool for what needs to happen at the cutting zone.
Threading generates a sustained, concentrated friction event at every tap tooth, simultaneously, for the full depth of the hole. In Inconel, that means sustained high-heat generation in a material with poor thermal conductivity, combined with galling risk because nickel alloys have a tendency to adhere to cutting tool materials under high-temperature contact.
What actually works:High-Pressure Through-Spindle Coolant
If your machine has through-spindle coolant capability and your tap or toolholder supports it, use it. High-pressure delivery gets lubricant to the cutting teeth directly, not just flooding the entry point of the hole. For through-holes, it also drives chips out the bottom. This is the highest-performance option and the one that most consistently produces repeatable results in Inconel threading.
Tapping Fluid Applied at Setup
For setups without through-spindle capability, a high-sulfur, high-chlorine cutting oil applied directly to the tap and into the hole before each cycle is the closest available substitute. This is not the same as brushing on a light coat of whatever is on the bench. Apply it deliberately, to the tap teeth and into the hole, as part of the cycle setup.
Hangsterfer’s S-500 and similar high-lubricity tapping compounds are formulated specifically for difficult threading applications and provide the film strength that standard flood coolant doesn’t. If you’re threading Inconel with water-soluble flood coolant as your only lubrication, you are running without the protection the tool needs.
What Not to Use
Standard water-soluble coolant at general machining concentration is insufficient for Inconel threading. It cools, but the lubrication film strength is too low for the contact pressures and temperatures involved. You may get away with it on the first few holes. You won’t get away with it consistently.

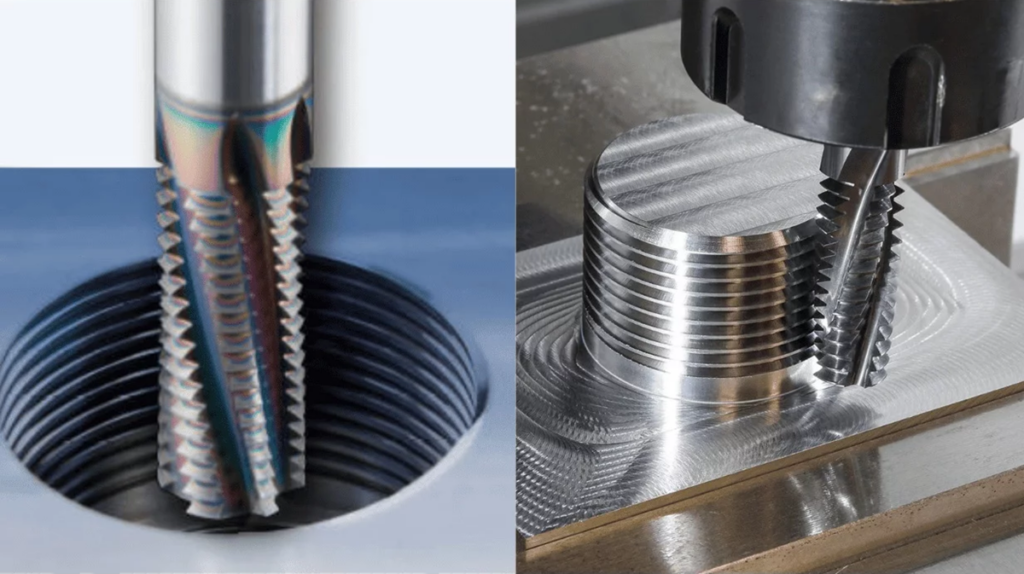

When Tapping Is the Wrong Answer: Thread Milling in Inconel
Tapping is the fastest threading method when conditions are right. In Inconel, conditions are not always right, and a broken tap in a finished part is a catastrophic outcome. For certain situations, thread milling is the correct process from the start, not a fallback after tapping fails.
Thread milling is worth specifying as the primary process when:
- The thread is in a blind hole where chip evacuation is marginal and a broken tap extraction would be difficult or impossible.
- The part value is high enough that tap breakage risk is unacceptable. If a scrapped Inconel aerospace component costs more than the time saved by tapping, thread milling is not the slower option, it’s the cheaper one.
- The thread size is large (above about 1/2 inch) where carbide taps become expensive and brittle. A thread mill that breaks can be backed out; a large carbide tap that breaks usually cannot.
- You need to thread multiple different sizes and want to reduce tooling inventory. A single thread mill can produce multiple thread pitches by varying the helical interpolation path.
- The thread tolerance is tight. Thread milling allows fine adjustment of the thread diameter by adjusting the toolpath radial offset, something a tap does not permit.
Thread Milling Parameters in Inconel
Thread mills in Inconel run faster than taps in absolute spindle speed terms, but the chip load per tooth and the radial engagement need to be conservative. A single-pass full-depth thread mill in Inconel is aggressive; consider a roughing pass at reduced depth of cut followed by a finishing pass for close-tolerance threads.
Climb milling (the mill moves in the direction of cutter rotation) is standard practice and produces better surface finish and lower cutting forces than conventional milling in this application.
Emuge-Franken’s thread mill lines include geometries specifically developed for high-temperature alloys. The cutting edge preparation, coating, and helix angle on these tools are different from general-purpose thread mills in ways that matter in Inconel. Using a thread mill designed for aluminum or stainless in Inconel is not a neutral decision.
| Factor | Tapping | Thread Milling |
| Setup complexity | Low | Higher (requires helical interpolation programming) |
| Cycle time | Faster | Slower per hole |
| Broken tool risk | Higher — tap breaks in hole | Lower — mill can be retracted |
| Blind hole performance | Challenging | Better chip control |
| Thread diameter adjustment | Not possible | Possible via toolpath offset |
| Large diameter threads (>1/2″) | Expensive, brittle carbide | Preferred method |
| Best for | Through holes, production volume, smaller diameters | High-value parts, blind holes, large diameters, tight tolerances |
A Practical Checklist Before You Run
Before threading Inconel, confirm each of these:
- Tap specification: Carbide or HSSE-PM substrate, TiAlN or AlTiN coating, correct geometry for hole type (spiral flute blind, spiral point through).
- Pre-drill condition: Sharp drill, correct diameter for H3 tap tolerance, correct depth with chip clearance margin. Deburr entry. Chamfer if applicable.
- Machine setup: Rigid tapping confirmed active. Spindle synchronization verified. No tension-compression holder.
- Speed: 8 to 12 SFM as a starting point for most Inconel 625/718 applications with carbide taps. Verify against your tap manufacturer’s data sheet.
- Lubrication: Through-spindle coolant or high-sulfur tapping compound applied to the tap and hole. Not standard flood coolant alone.
- First hole inspection: Thread gauge the first part before running a batch. Inconel doesn’t give you a second chance to discover a systematic setup error twenty parts in.
- Tap condition monitoring: Establish a tool life limit and hold to it. Don’t run taps to failure in Inconel. A worn tap that breaks on part fifty costs more than the five additional holes you were hoping to get from it.
