Why Taps Break at Reversal: A Guide to Synchronous Tap Holders
Every tool in your magazine does the same basic job. Cut, retract, done. Except a tap. Here is what happens in the split second a lot of folks don't think about, and why the holder matters as much as the tool itself.
The Only Tool In Your Magazine That Runs Backward
Think through what happens across a typical tool change. A drill plunges and retracts. An end mill traces its path and lifts. A boring bar feeds in and pulls back. Every one of them follows the same pattern. Enter the material, do the work, exit the same direction the machine is already moving.
A tap is the exception. It plunges, cuts a thread, then stops dead at depth. The spindle reverses. The Z-axis feed reverses. The tool that was cutting a moment ago is now backing out through the same thread it just made, still engaged, still under load.
Nothing else in the shop has to survive that. And nothing else in the shop breaks with the same “why did that just happen” mystery either.
What Actually Happens at the Reversal
Three things are working against you the instant the spindle reverses direction.
Load Direction Flips
During the cutting stroke, thrust is pushing the tap into the hole. Torque is winding the tool tighter into the cut. The instant reversal begins, thrust flips to pulling the tool out and torque flips to unwinding. The tap has to survive a full reversal of forces across a very short time window, and any slack or lag between the spindle and the Z-axis feed shows up as an axial spike at the flutes.
Chips Are Still In The Flute
The chips that were forming a moment ago do not vanish because the tool changed direction. They are still packed into the flutes, still trying to clear the hole. On the reversal, those chips get compressed against the flanks of the thread and against the flutes themselves. That compression drives up torque, adds heat, and in blind holes with limited clearance, can pack the flutes solid.
Synchronization Errors Become Axial Force
The idea behind rigid tapping is simple. Match spindle rotation exactly to Z-axis feed so the tap traces its own thread pitch on the way in and on the way out. In practice, no drive system tracks that perfectly. Encoder resolution, acceleration ramps at direction change, and any lag between the spindle and feed servos all create tiny mismatches. Every one of those mismatches turns into an axial push or pull on the tap because the flutes are engaged and cannot slip. The tap is now the compliance in the system.
The Rigid Tapping Myth
When rigid tapping arrived, it solved the biggest problem in tapping. You no longer needed a tension and compression holder to absorb pitch mismatches, because the machine itself was doing the pitch tracking. That was true, and it was a real leap.
What got lost in the marketing is that “rigid” describes the pitch tracking, not the forces at the reversal. The machine can be locked in perfect synchronization on paper and still put axial spikes into the tap every time the direction changes. On a stiff, well-tuned machining center running a straightforward through hole in mild steel, those spikes are small enough to ignore. On a longer tap, a smaller diameter, a difficult material, or a blind hole with tight chip clearance, they add up fast.
Broken taps in a rigid tapping cycle almost never come from the pitch tracking being off. They come from the reversal moment. Which is why the holder still matters.
What A Synchronous Tap Holder Actually Does
A synchronous tap holder sits between the machine spindle and the tap. Its job is to be the compliance the tap does not have. When the machine and the tap disagree by a few thousandths in either direction during the reversal, the holder gives.
The mechanism varies by manufacturer, but the principle is consistent. A small amount of axial float in both compression and tension, typically well under a millimeter in each direction, backed by a mechanism that resets to neutral under no load. Enough travel to absorb the reversal spike. Not so much that it introduces pitch error in the finished thread.
The gain shows up in three places you can measure. Tool life goes up because peak axial force at reversal drops. Thread quality goes up because chatter and axial vibration at direction change are damped. And the failure mode changes. When a synchronous holder is working correctly, you tend to see gradual wear rather than sudden snapped taps at random intervals.

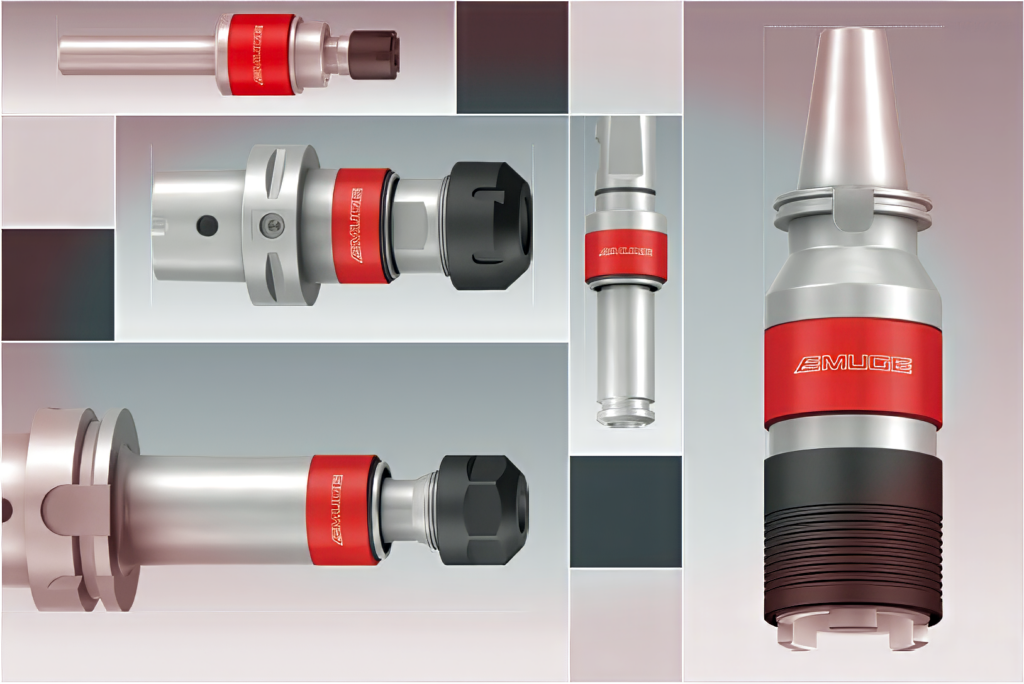

Emuge-Franken Soft Synchro
Emuge-Franken has been building tap holders for as long as they have been building taps, and their Soft Synchro line is engineered specifically for the reversal problem. A short axial float on both sides of the cutting stroke absorbs the spike at direction change without introducing pitch error in the thread itself. The holder is designed to reset cleanly under no load, so cycle after cycle it goes back to neutral before the next hole.
The design pays off most visibly on the applications where rigid tapping alone starts to struggle. Stainless steel where work hardening drives up torque. Blind holes where chip evacuation is limited. Small diameter taps where the tool itself has no torsional reserve. Titanium and Inconel where every axial spike carries a real risk of snapping the tool at the neck.
It is not a shortcut. A bad tap in a Soft Synchro holder is still a bad tap. But a good tap in the right holder cuts more parts per grind, produces more consistent thread quality, and takes broken taps out of your unplanned downtime column.
When To Reach For One
Not every job needs a synchronous holder. Straightforward through-hole tapping in free-machining steel on a rigid VMC will run all day out of a rigid tap chuck without complaint. Where the calculation changes is anywhere the reversal moment starts to matter.
Reach for a synchronous holder when you are running smaller diameter taps where breakage is expensive, cutting blind holes where chip evacuation limits your options, threading stainless or superalloys where torque spikes are already high, running production jobs where consistent tool life is worth more than the cost of the holder, or troubleshooting a job that is snapping taps and you have already checked the obvious.
The math is usually simple. One broken tap costs more than most machinists realize once you add in cycle time, rework, and the scrap or repair cost on the workpiece. A holder that eliminates one broken tap a month has usually paid for itself before the quarter is out.
The Right Tap Starts With The Right Holder
Chapman stocks the full Emuge-Franken tap and Soft Synchro tap holder line, plus tapping tools and holders from Dormer Pramet, LMT Tools, and other authorized vendors. Our team can help you match tap geometry, coating, and holder to your specific material and hole condition so you stop guessing and start cutting.
Browse tapping tools and tap holders at shop.wcchapman.com, or call our team at 410.686.6860 to talk through your application.
