How to Diagnose Costly End Mill Wear Before It Scraps Your Parts
How to identify flank wear, crater wear, built-up edge, chipping, and thermal cracking -- and what each one means for your process
Most shops treat tool replacement as an event rather than a diagnostic moment. The end mill comes out of the spindle, goes in the trash, a new one goes in, and the process continues. The information sitting in that worn tool — which failure mode happened, where on the tool it happened, and how fast it progressed — goes unread.
That’s a missed opportunity. Tool wear patterns are a direct readout of your machining process. Flank wear rate tells you whether your speed and feed are in the right range for your material and coating. Crater wear tells you about heat and chemistry at the rake face. Built-up edge tells you about adhesion and lubrication. Chipping tells you about interrupted cuts, vibration, or coating mismatch. Each wear mode has a different cause and a different fix.
This post is a field guide to the five primary end mill wear modes: what each looks like, what causes it, what it costs you if you ignore it, and what to adjust in your process. There’s also a section at the end on the replace vs. regrind decision, because a worn tool isn’t always a dead tool.
Why Tool Wear Matters Beyond Tool Cost
The direct cost of a worn end mill is the price of a replacement. That’s the number shops track. The indirect costs are larger and almost never tracked:
- Surface finish degradation. A tool running past its useful life produces progressively worse surface finish. Parts that should finish at Ra 32 start finishing at Ra 63 or worse. Depending on the application, those parts get scrapped, re-run, or shipped and returned.
- Dimensional drift. Flank wear increases the effective cutting diameter and changes how the tool deflects under load. Holes that should be 0.500 inch start coming out at 0.502 inch. Tolerances that were comfortable become marginal.
- Spindle load and cycle time. A worn tool requires higher cutting forces to make the same cut. Spindle load increases, feed rates drop to compensate, and cycle time creeps up. In a high-volume operation, this is a direct hit on throughput.
- Catastrophic failure risk. A tool running well past its wear limit is a tool approaching failure. End mill breakage in the cut damages workpieces, can damage spindles, and in the worst case creates a safety event. Managed wear is a choice; unmanaged wear is a gamble.
The argument for reading your tools before you scrap them is not about sentimentality. It’s about the information they carry.
The Five Wear Modes
1. Flank Wear
Flank wear is the most common end mill wear mode and the one you want to see. It’s the progressive abrasion of the flank face (the face behind the cutting edge) as the tool rubs against the machined surface. It appears as a flat, shiny wear land along the cutting edge, running parallel to it.

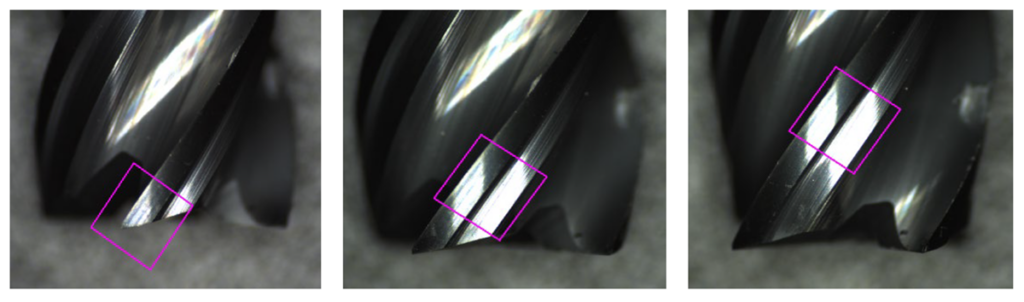

What it looks like: A uniform bright band on the flank face, widening progressively from the tool tip toward the shank. In early stages it’s barely visible. As it progresses the wear land widens and the cutting edge becomes visibly rounded when viewed under magnification.
What causes it: Normal abrasive contact between the tool and workpiece. Every material has hard particles, carbides, oxides, and inclusions, that abrade the tool flank with each pass. This is the wear mode carbide substrates and hard PVD coatings are specifically engineered to resist.
What it tells you: Uniform flank wear that progresses at a consistent rate means your process is in control. The tool is wearing predictably, which means you can establish a tool life limit based on measured wear land width (typically 0.010 to 0.015 inch for finish passes, 0.020 to 0.030 inch for roughing) and change tools before problems develop.
What to adjust: If flank wear is progressing faster than expected, cutting speed is the primary lever. Flank wear rate is strongly correlated with surface speed. Dropping speed 10 to 15 percent often produces a disproportionate improvement in tool life. Check coating suitability for your material as well: a TiN-coated tool running in hardened steel will wear significantly faster than the same geometry in AlTiN.
A 10x to 30x loupe or toolmaker’s microscope is enough to measure flank wear land width on most end mills. Keep a log of wear land measurements versus parts produced and you have the data to predict tool life rather than react to tool failure. This costs about five minutes per tool change and pays back in reduced scrap and more consistent parts.
2. Crater Wear
Crater wear develops on the rake face (the face the chip slides across as it exits the cut) rather than the flank. It appears as a depression or pit behind the cutting edge, formed by the combination of heat, pressure, and chemical interaction between the chip and the tool face.
What it looks like: A concave depression on the rake face, typically starting close to the cutting edge and widening with use. The crater can be subtle in early stages and becomes clearly visible as it deepens. In severe cases it breaks through to the cutting edge, causing rapid edge failure.
What causes it: High temperature at the chip-tool interface combined with chemical diffusion between the workpiece material and the tool substrate. In steel machining, iron diffuses into the cobalt binder in the carbide substrate at elevated temperatures, weakening the structure and allowing the chip to erode it. Crater wear accelerates with cutting speed because speed drives temperature.
What it tells you: Significant crater wear means your cutting temperature is too high. This is primarily a speed problem, but can also indicate insufficient lubrication, a coolant strategy mismatch with your coating, or a coating that isn’t matched to your material.
What to adjust: Reduce cutting speed. Improve heat management at the rake face, through-spindle coolant or MQL delivers lubricant where crater wear is forming, which flood coolant often can’t reach. Review your coating: AlTiN and AlCrN coatings provide better chemical stability at high temperatures than TiN or TiCN, which matters directly for crater wear resistance in steel.
3. Built-Up Edge (BUE)
Built-up edge is fundamentally different from the other wear modes because it isn’t the tool being removed — it’s workpiece material being added to the cutting edge. Under certain temperature and pressure conditions, the material being cut welds itself to the tool face and builds up into a false edge that cuts instead of the actual tool geometry.
What it looks like: A lumpy, irregular deposit on the cutting edge, usually the same color as the workpiece material. In aluminum it’s silver-gray. In steel it’s darker, often with an oxidized appearance. The cutting edge loses its defined geometry and the tool produces a characteristic torn, rough surface finish rather than a clean sheared surface.
What causes it: Low cutting temperatures combined with high contact pressure and materials with an affinity for adhesion. This is why BUE is most common in aluminum, low-carbon steel, and austenitic stainless. The material doesn’t get hot enough to shear cleanly and instead smears and welds to the tool. Insufficient lubrication at the rake face makes it worse.
What it tells you: Your cutting speed is likely too low, or your rake face lubrication is inadequate, or your coating has too much affinity for the workpiece material. BUE is a process problem, not a tool quality problem, but it destroys surface finish and accelerates real wear underneath the deposit.
What to adjust: Increase cutting speed to generate enough heat for clean shearing. Improve lubrication delivery to the rake face. For aluminum, switch to a ZrN, DLC, or uncoated polished carbide tool: TiAlN and AlTiN coatings contain aluminum, which is chemically similar to the workpiece and promotes adhesion. A high-helix geometry (45 to 50 degrees) also helps by moving the chip off the rake face quickly before it can build up.
Built-up edge and chipping can look similar at a glance because both create irregular cutting edge geometry. The difference is the material: BUE adds material to the edge, chipping removes it. Run a fingernail lightly across the cutting edge. A deposit that can be flicked off with a fingernail or solvent is BUE. A void in the edge geometry is chipping. The corrective action is opposite for each.
4. Chipping and Micro-Chipping
Chipping is the loss of small pieces of the cutting edge, ranging from micro-chipping that requires magnification to see all the way to gross chipping where visible pieces of the flute are missing. Unlike flank wear, which is progressive and manageable, chipping is a fracture event and the damage is immediate.

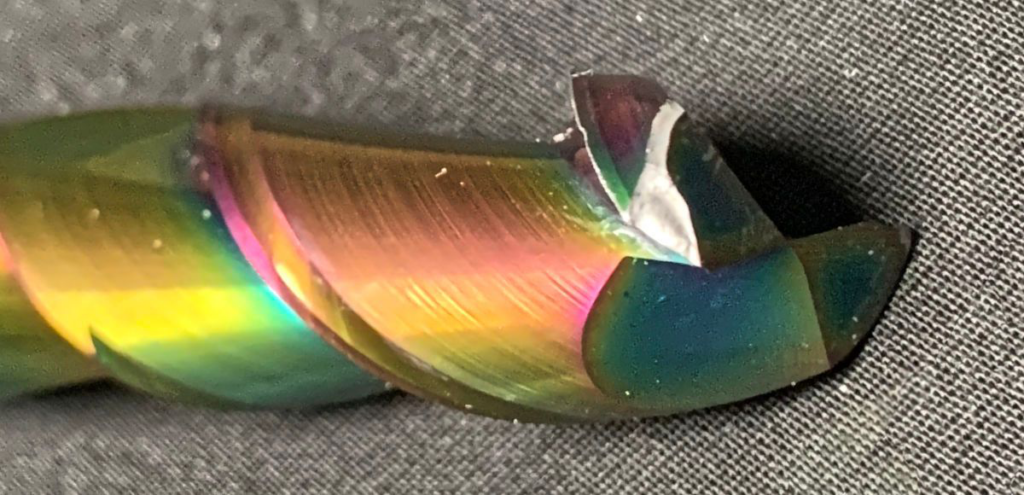

What it looks like: Irregular notches or missing sections along the cutting edge, most commonly at the tool tip or along the outer corner. Micro-chipping appears under magnification as a ragged, irregular edge rather than the smooth, sharp geometry of a new tool. Gross chipping is visible to the naked eye.
What causes it: Impact loading, vibration, thermal shock, or a coating/substrate mismatch with the application. Common causes include: interrupted cuts where the tool enters and exits the material repeatedly, insufficient rigidity in the setup allowing tool deflection and chatter, applying flood coolant to a hot tool coating that’s optimized for dry or MQL cutting (thermal shock), and running a tool with too little edge preparation (too sharp) in a hard or abrasive material.
What it tells you: Chipping is often a setup problem more than a tool problem. Before switching tools, check your fixturing rigidity, your overhang length, and your entry and exit strategies. A worn toolholder with excessive runout causes load imbalance between flutes that drives micro-chipping even at conservative parameters.
What to adjust: Reduce overhang, improve fixturing, check toolholder runout with a test indicator. Ramp into cuts rather than plunging. If flood coolant is being applied to AlTiN or TiAlN tooling at high speeds, switch to MQL or dry. For materials with hard inclusions like cast iron or hardened steel, a tool with a honed edge preparation rather than a razor-sharp edge will handle the impact loading better.
5. Thermal Cracking
Thermal cracking produces a distinctive pattern of cracks running perpendicular to the cutting edge, caused by repeated thermal cycling as the tool alternates between hot cutting and cold coolant exposure. It’s most common in milling operations where the cutting edge is continuously entering and exiting the cut.
What it looks like: A series of parallel cracks running across the flank face, perpendicular to the cutting edge and roughly evenly spaced. Under magnification, the cracks are clearly defined. As they propagate, they can connect and cause sections of the cutting edge to break away, which is why thermal cracking is a leading indicator of impending chipping.
What causes it: The mechanical stress of repeated temperature swings. When a cutting edge exits the cut and hits flood coolant, it contracts rapidly. When it enters the next cut, it expands rapidly. The cumulative fatigue from these cycles eventually exceeds the material’s fracture toughness. High-pressure flood coolant applied at high cutting speeds accelerates this significantly.
What it tells you: Your coolant strategy is likely mismatched with your tool coating. AlTiN and TiAlN coatings are specifically engineered to operate in the dry or MQL regime where the cutting edge stays at a stable elevated temperature rather than cycling. Aggressive flood cooling of these coatings causes exactly the thermal cracking you’re seeing.
What to adjust: Switch to MQL or dry cutting if your coating and material permit it. If flood is required, reduce cutting speed to lower the thermal differential between cutting and cooling. Consider an AlCrN coating which has slightly better thermal shock resistance than TiAlN variants for applications where wet cutting is unavoidable.
Quick Reference: Wear Mode Diagnostic Table
| Wear Mode | Where It Appears | Primary Cause | First Adjustment |
| Flank wear (normal) | Flank face, parallel to cutting edge | Abrasion — normal wear | Reduce speed if progressing too fast; check coating match |
| Crater wear | Rake face, behind cutting edge | High temperature, chemical diffusion | Reduce speed; improve coolant delivery to rake face |
| Built-up edge | On cutting edge, added material | Low temp adhesion, poor lubrication | Increase speed; improve lubrication; check coating for material affinity |
| Chipping | Cutting edge, missing material | Impact, vibration, thermal shock, runout | Fix setup rigidity; reduce overhang; check toolholder runout |
| Thermal cracking | Flank face, cracks perpendicular to edge | Thermal cycling from flood coolant | Switch to MQL or dry; reduce speed; consider AlCrN coating |
Replace vs. Regrind: The Decision That Often Gets Skipped
A worn end mill is not automatically a scrap end mill. Quality solid carbide tooling can be reground and recoated multiple times before the substrate is consumed, and the economics are often compelling.
The decision depends on a few factors:
- Wear mode. Flank wear and even moderate crater wear are recoverable by regrinding. Chipping, thermal cracking, or gross edge failure may not be, depending on severity. A tool with chipping along the full flute length is likely scrap. A tool with uniform flank wear that hasn’t reached the catastrophic stage is a regrind candidate.
- Tool value. A $15 general-purpose end mill probably isn’t worth the logistics of regrinding. A $120 specialty profile tool or a long-series end mill in a difficult geometry almost certainly is. The regrind cost is typically 30 to 50 percent of replacement cost for a quality tool.
- Geometry preservation. Regrinding removes material from the flutes to restore the cutting edge. Over multiple regrind cycles, the tool gets shorter and the diameter decreases slightly. For roughing tools where exact diameter is less critical, this is acceptable for several cycles. For finish tools held to tight diameter tolerances, it may become an issue sooner.
- Coating restoration. A reground tool needs to be recoated to restore the wear resistance that made the original tool perform. Recoating from a reputable shop that can match or exceed the original specification is part of a proper regrind, not optional.
The best shops treat tool regrinding as a managed program rather than an ad hoc decision. They track tool life cycles, pull tools at a defined wear limit rather than at failure, and batch tools for regrinding with known specifications. The result is lower per-part tooling cost and more consistent process performance than a replace-on-failure approach.
What to Look For: A Simple Inspection Routine
You don’t need a lab to get useful information from a worn tool. A 10x loupe and a consistent habit at tool change time is enough to catch most issues early:
- Hold the tool under a light and rotate it slowly. Look for the shiny flank wear land — note its width and whether it’s uniform around all flutes.
- Check the rake face for discoloration, pitting, or concave wear behind the cutting edge.
- Run a fingernail lightly across the cutting edge. A smooth drag means the edge is intact. Catches or irregularities mean chipping or BUE.
- Look for cracks perpendicular to the cutting edge — the thermal cracking signature.
- Note the tool tip condition. That’s where wear concentrates first and where chipping initiates most often.
Log what you see. Even informal notes on a tool change sheet, wear mode, approximate wear land width, parts produced, build a picture over time that lets you predict tool life and adjust processes before they produce bad parts.
